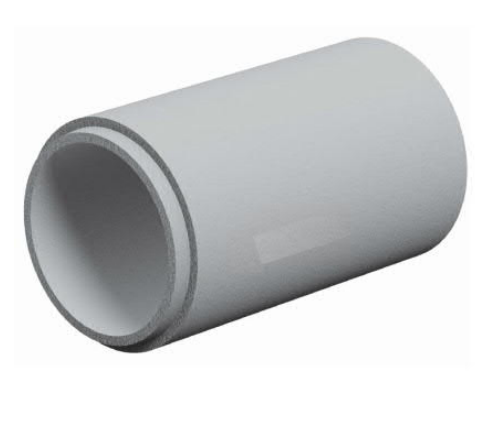

Reinforced Concrete Horizontal Elliptical PipeTongue and Groove Joint18" - 144" Equivalent Diameter

Reinforced Concrete Horizontal Elliptical PipeTongue and Groove Joint18" - 144" Equivalent Diameter

$0.00
$0.00
Sale Sold out

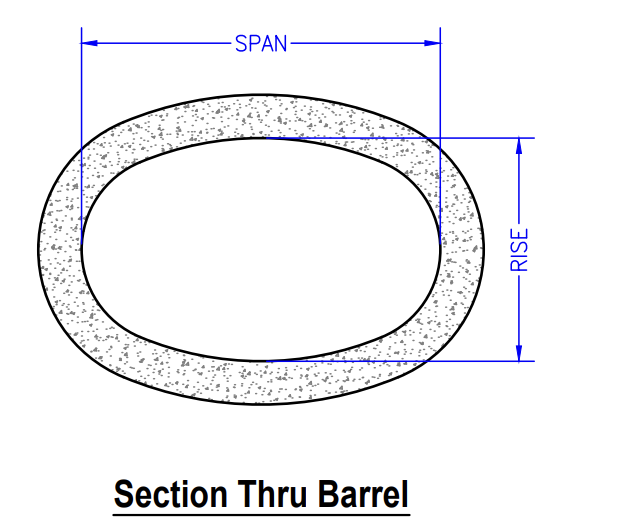

Equivalent Round Diameter
(inches)		 Nominal Rise
(inches)		 Nominal Span

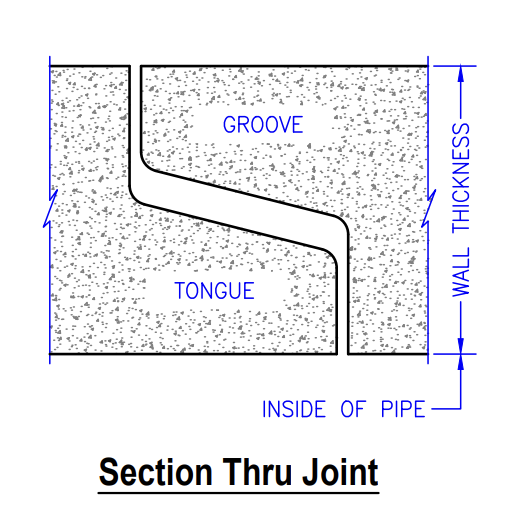

(inches)		 Wall Thickness
(inches)		 Approx. Weight
(lbs/ft)		 Waterway Area
(ft²)
18 14 23 2-3/4 200 1.8
24 19 30 3-1/4 310 3.3
30 24 38 3-3/4 450 5.1
36 29 45 4-1/2 650 7.4
42 34 53 5 850 10.2
48 38 60 5-1/2 1,040 12.9
54 43 68 6 1,285 16.7
60 48 76 6-1/2 1,535 20.5
66 53 83 7 1,815 24.8
72 58 91 7-1/2 2,120 29.4
78 63 98 8 2,440 34.6
84 68 106 8-1/2 2,790 40.1
90 72 113 9 3,170 46.1
96 77 121 9-1/2 3,560 52.4
102 82 128 9-3/4 3,880 59.1
108 87 136 10 4,200 66.4
114 92 143 10-1/2 4,650 73.9
120 97 151 11 5,130 82.1
132 106 166 12 6,150 99.2
144 116 180 13 7,300 118.0

11041 in stock
