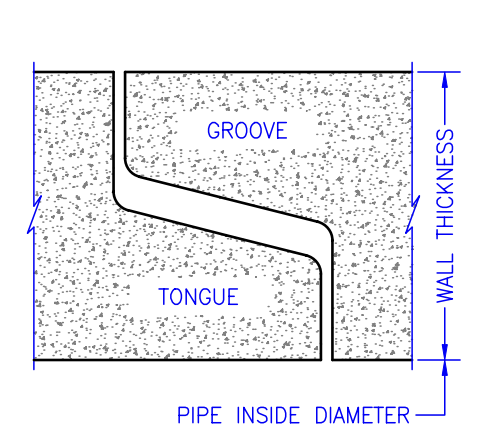

Reinforced Concrete Arch Pipe / Tongue and Groove Joint 15" 72" Diameter

Reinforced Concrete Arch Pipe / Tongue and Groove Joint 15" 72" Diameter

$0.00
$0.00
Sale Sold out

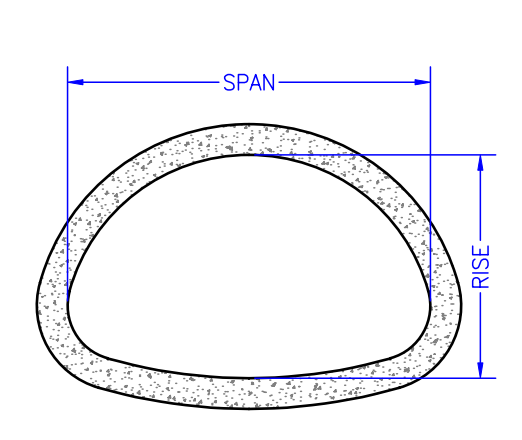

Table of Pipe Properties
Equivalent Round
Pipe Diameter
(inches)		 Rise
(inches)		 Span
(inches)		 Wall
Thickness
(inches)		 Approx.
Weight
(lbs/ft)		 Full Flow
Water Area
(ft²)
15 11 18 3 188 1.10
18 13-1/2 22 3-1/8 233 1.65
24 18 28-1/2 3-1/2 325 2.80
30 22-1/2 36-1/4 3-1/2 392 4.40
36 26-5/8 43-3/4 4 537 6.40
42 31-5/16 51-1/8 4-1/2 696 8.80
48 36 58-1/2 5 885 11.4
54 40 65 5-1/2 1,079 14.3
60 45 73 6 1,333 17.7
72 54 88 7 1,856 25.6

11033 in stock
