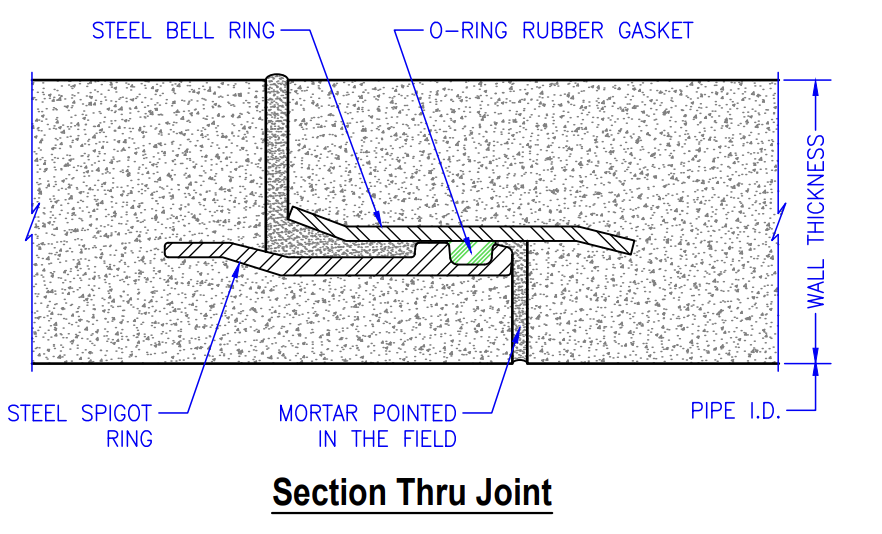

Reinforced Concrete Pipe w/ Steel Ring Joint30" - 96" Diameter

$0.00

Sale Sold out

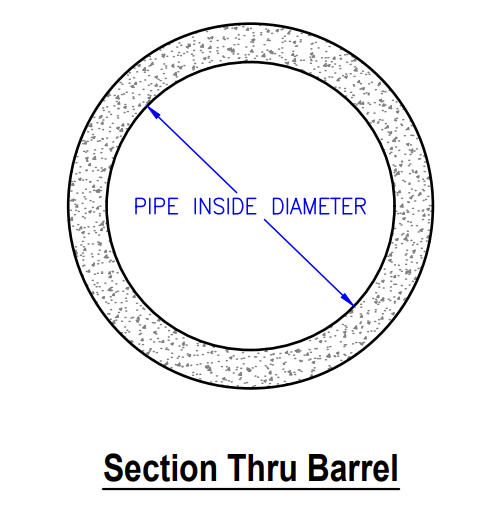

Pipe Inside Diameter (inches)	B-Wall		C-Wall		Waterway Area (ft²)
Pipe Inside Diameter (inches)	Wall Thickness (inches)	Approx. Weight (lbs/ft)	Wall Thickness (inches)	Approx. Weight (lbs/ft)	Waterway Area (ft²)
30	3-1/2	384	4-1/4	476	4.91
36	4	524	4-3/4	633	7.07
42	4-1/2	685	5-1/4	812	9.62
48	5	867	5-3/4	1,011	12.6
54	5-1/2	1,071	6-1/4	1,232	15.9
60	6	1,296	6-3/4	1,474	19.6
66	6-1/2	1,542	7-1/4	1,738	23.8
72	7	1,810	7-3/4	2,023	28.3
78	7-1/2	2,098	8-1/4	2,329	33.2
84	8	2,409	8-3/4	2,656	38.5
90	8-1/2	2,740	9-1/4	3,004	44.2
96	9	3,093	9-3/4	3,374	50.3
